ISUZU MU-X Drawer System

SKU AM-MUX-RD
AU$4,599.00
Price incl. GST (10%) AU$418.09
EvaKool Drawer Fridge 40LT
FITTING
Victron Power System Updrade
In stock: 1 available
1
Maximum purchase quantity: 1 items
Save this product for later
ISUZU MU-X Drawer System
Product Details

**PRICE INCLUDES FITTING OF DRAWER SYSTEM**

Drawer Systems made to order please allow approx 6 weeks lead time.

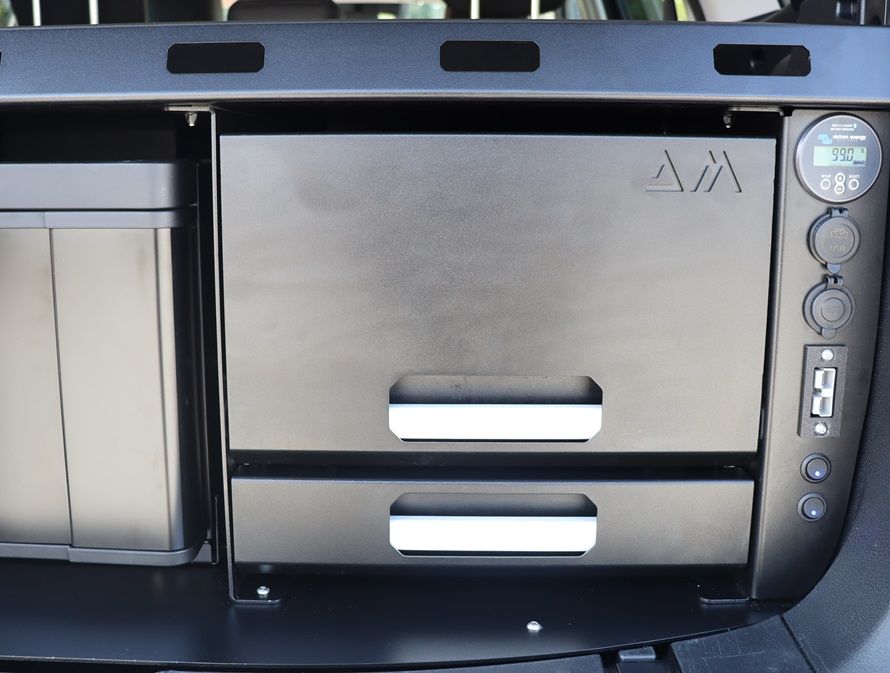

MUX drawer system is designed to maximise storage and organisation in the rear boot area.

A well-designed drawer system can greatly enhance the functionality and utility, making it an ideal choice for serious adventurers and off-road enthusiasts.

Weight

  • 65kg Not including Fridge / Electrical System / Extras

Features

    • Australian Made
    • Designed & Fabricated in house
    • Made from Aluminium, Mild Steel and Stainless Steel
    • Designed specifically for the ISUZU MU-X 2021 (NEWER SHAPE)
    • Contoured to fit the vehicle’s cargo area precisely using 3D Scanning / CAD technologies
    • Rear Seats must be removed for installation
    • False floor included in design
    • Storage Drawers:
      • Top Drawer 735L x 345W x 235H
      • Under Drawer 700L x 305W x 75H
    • Lift up stainless Lid on bottom drawer, doubling up as a table/bench space
    • Flush Drawer Handles
    • 125kg / 227kg Locking Drawer Slides
    • Stainless Steel Fasteners
    • Designed to suit the Evakool 40LT Drawer Fridge / Freezer
    • 200ah CustomLITHIUM Battery tray & strap included
    • Powder-Coated


Touring Electrical System

  • 200ah Lithium Battery (CustomLITHIUM)
  • Victron DC-DC charger Orion-Tr Smart 12/12-30A Non-isolated
  • Victron Battery Monitor BMV-712 BLACK Smart
  • Victron SmartShunt 500A/50mV
  • Victron SmartSolar MPPT 100/30
  • Shervey USB C&A
  • Shervey Multi-Current Fuse Block
  • Flush Red 50amp Anderson Plug (Solar input)

PLEASE NOTE:

  • Check Regulations: Ensure you understand the local regulations and requirements for vehicle modifications in your area. Each state and territory may have different rules regarding seat removal and modification plates (Mod plates).
  • Modification Approval: You may need to get the modification approved by a certified engineer or vehicle inspection station if you would like to permanently removing the rear seats and seat belts.
  • AM Off Road to sort: We can have this sorted if we are installing in house only if the car is registered only in QLD. Fee charged $550 inc GST.


    • Please get in touch with us at sales@amoffroad.com.au for any questions regarding the drawer system or power system

    Please note, we can also custom make this product to suit different designs or power system
